FIRING’ YOUR CREATIBITY

High efficient Kilns
for regular & occasional use

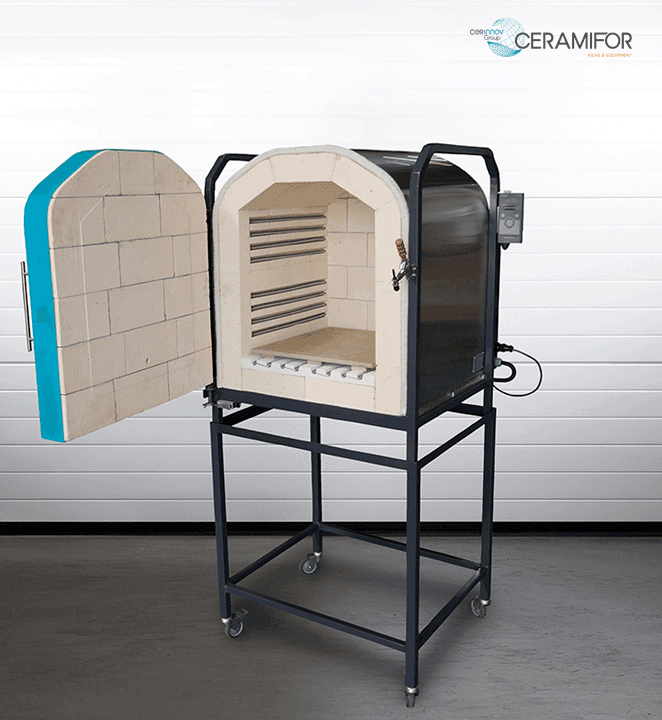

The best-seller, efficient and reliable, the CK Line is the choice of excellence to make your ceramic creativity a reality. Without doubt, the best partner of any ceramicist.

CK kilns

An excellent choice for any application
2.9 k€
  • High climb rate capability, 20°C to 1320°C in 6h(with load)
  • Adjustable air inlet for faster cooling
  • Rear chimney for effective exhaust and cooling
  • Ventilated door
  • Digital controller BentrupTC88e, very easy to use and with high temperature precision – PID system
Have a project ?

Maximum temperature

1320 °C

Kil construction

Stainless steel
with 0.8 mm thick

Heating system

Kanthal A1 / Resustohm 145 heating elements

Temperature controller

Digital controller Bentrup TC88e

1-phase or 3-phase

CK 80 E and CK 120 E are compatible with both systems

Our differents models of the CK Line

CK 50 E

k€*2.29
  • Internal vol. : 54
  • Internal dim. WxDxH : 400x400x358
  • External dim. WxDxH : 740x785x665
  • Weight : 95 Kg
  • Power : 4.5 kW
  • Current (A) 1PH/3PH : 20
  • Voltage (V) 1PH/3PH : 230+N

CK 80 E

k€*2.68
  • Internal vol. : 85
  • Internal dim. WxDxH : 460x400x475
  • External dim. WxDxH : 795x785x780
  • Weight : 115 Kg
  • Power : 6.7 kW
  • Current (A) 1PH/3PH : 29 | 10/PH
  • Voltage (V) 1PH/3PH : 230+N | 3×400+N

CK 120 E

k€*3.3
  • Internal vol. : 121
  • Internal dim. WxDxH : 460x515x525
  • External dim. WxDxH : 795x885x835
  • Weight : 137 Kg
  • Power : 9.0 kW
  • Current (A) 1PH/3PH : 39 | 13/PH
  • Voltage (V) 1PH/3PH : 230+N | 3×400+N

More technicals informations ?

download

* excluding value added tax

More than 5000 kilns delivered worldwide

CERAMIFOR, a specialized brand in the manufacturing of Industrial Kilns and Equipment for the Ceramics, also has solutions adapted to ceramists, art studios, professionals and laboratories, for occasional, regular or intensive use, that follows the whole ceramics creative process, including equipment for body preparation, production, finishing, painting and glazing.
