CERAMIFOR also has solutions adapted to ceramists, art studios, professionals and laboratories, for occasional, regular or intensive use.

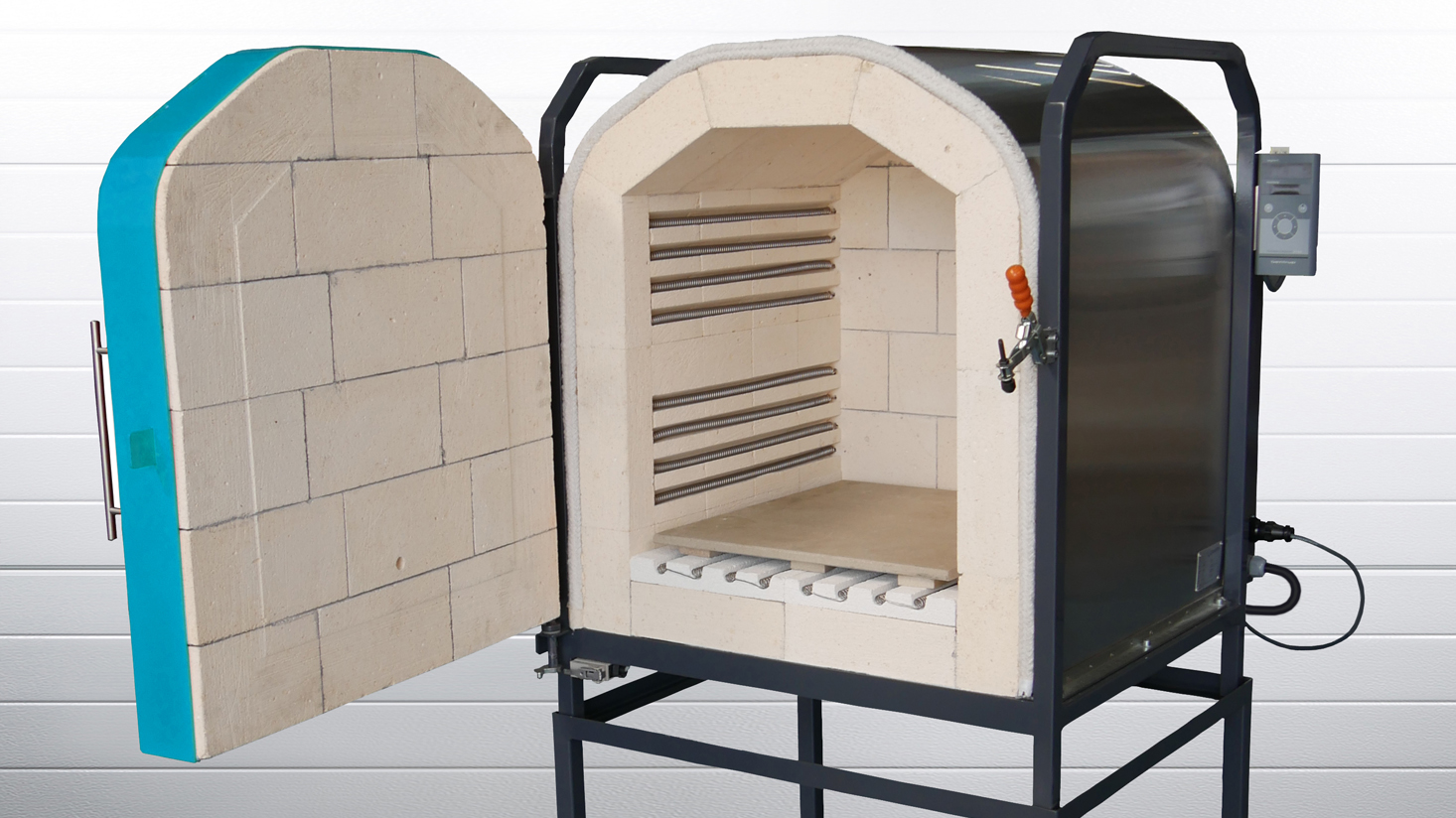

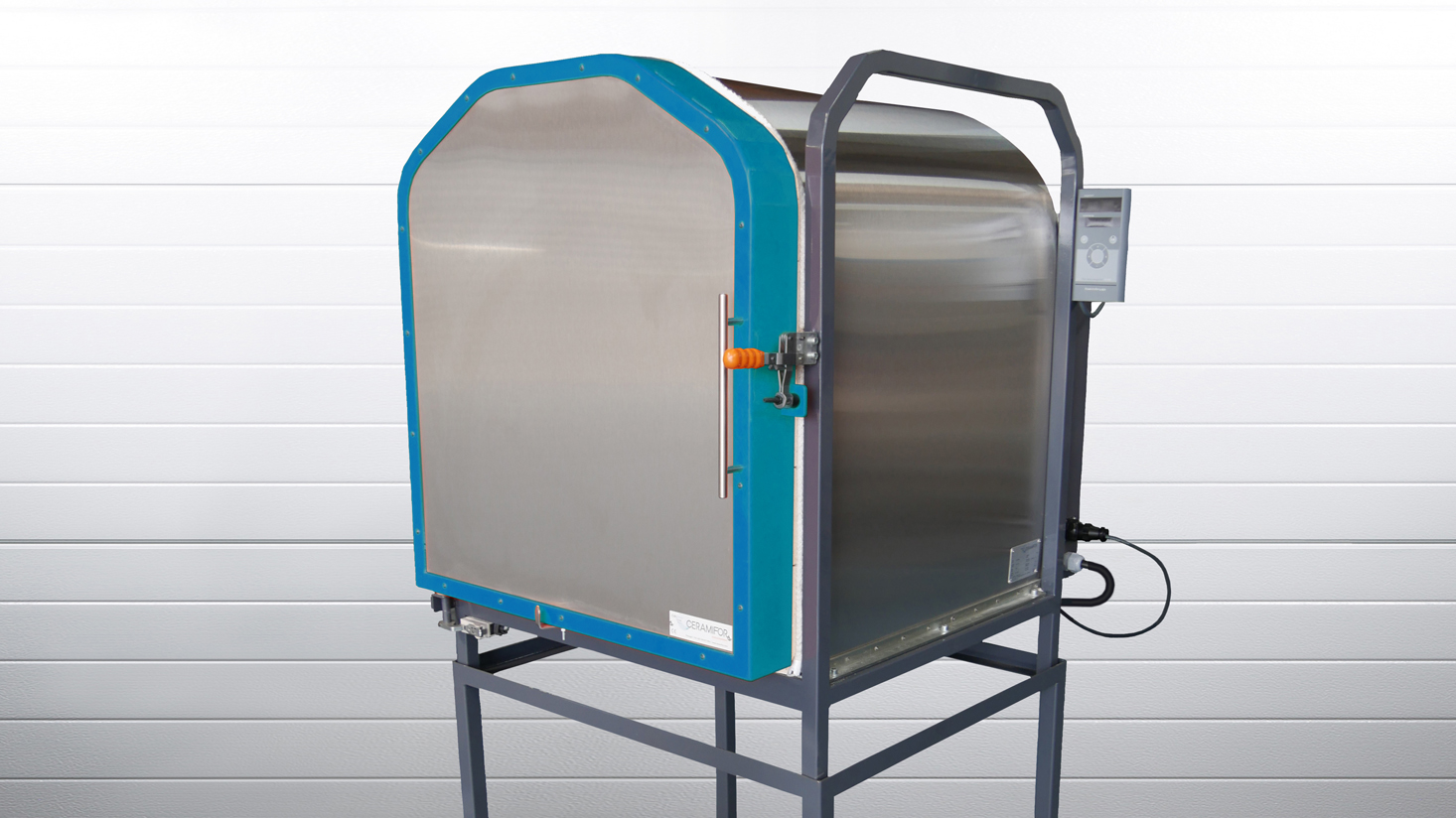

CK kilns are an excellent choice for any application, standing out for:



  • High climb rate capability, 20°C to 1320°C in 6h (with load);
  • Adjustable air inlet for faster cooling;

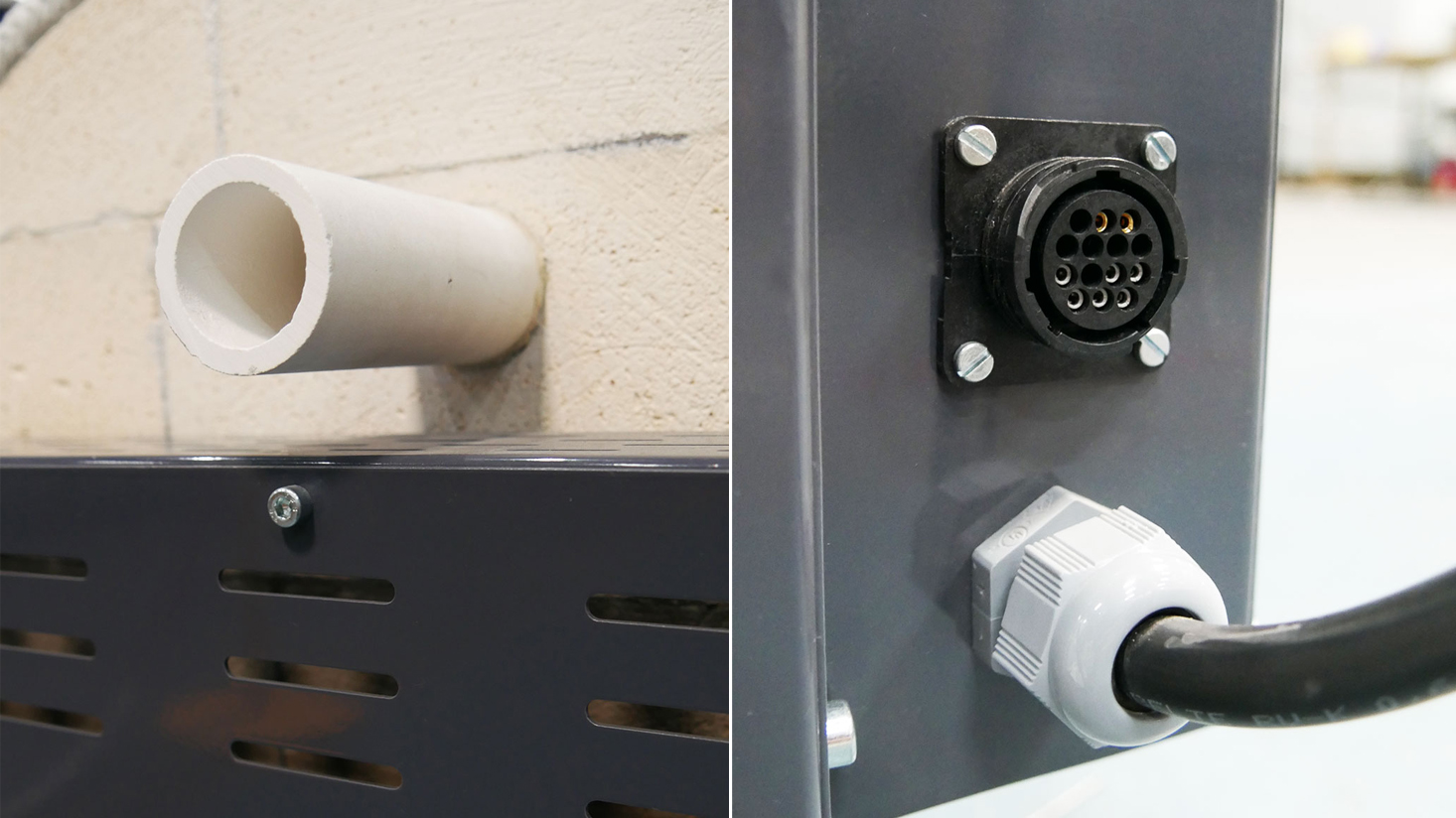

  • Rear chimney for effective exhaust and cooling;

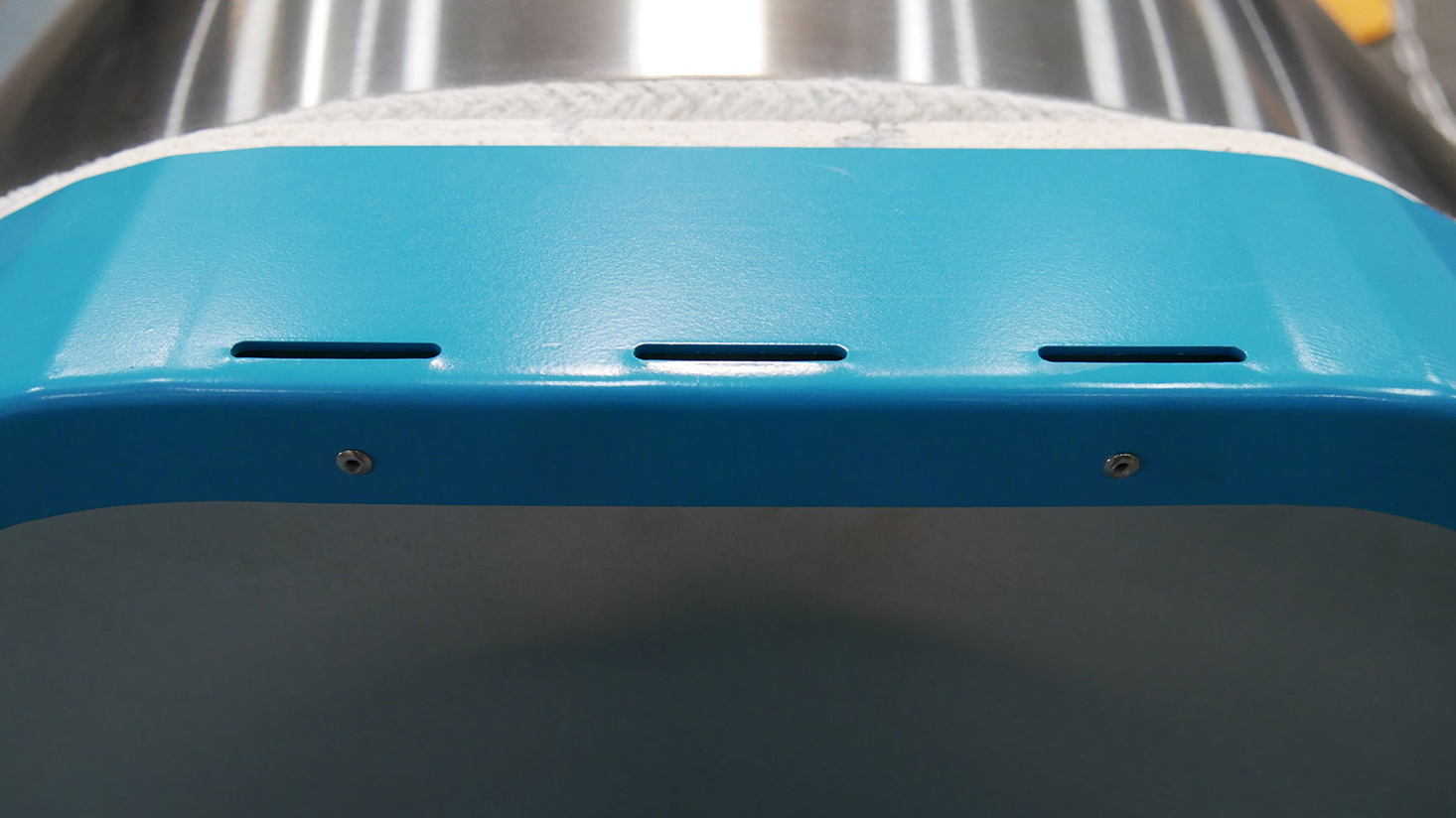

  • Ventilated door;

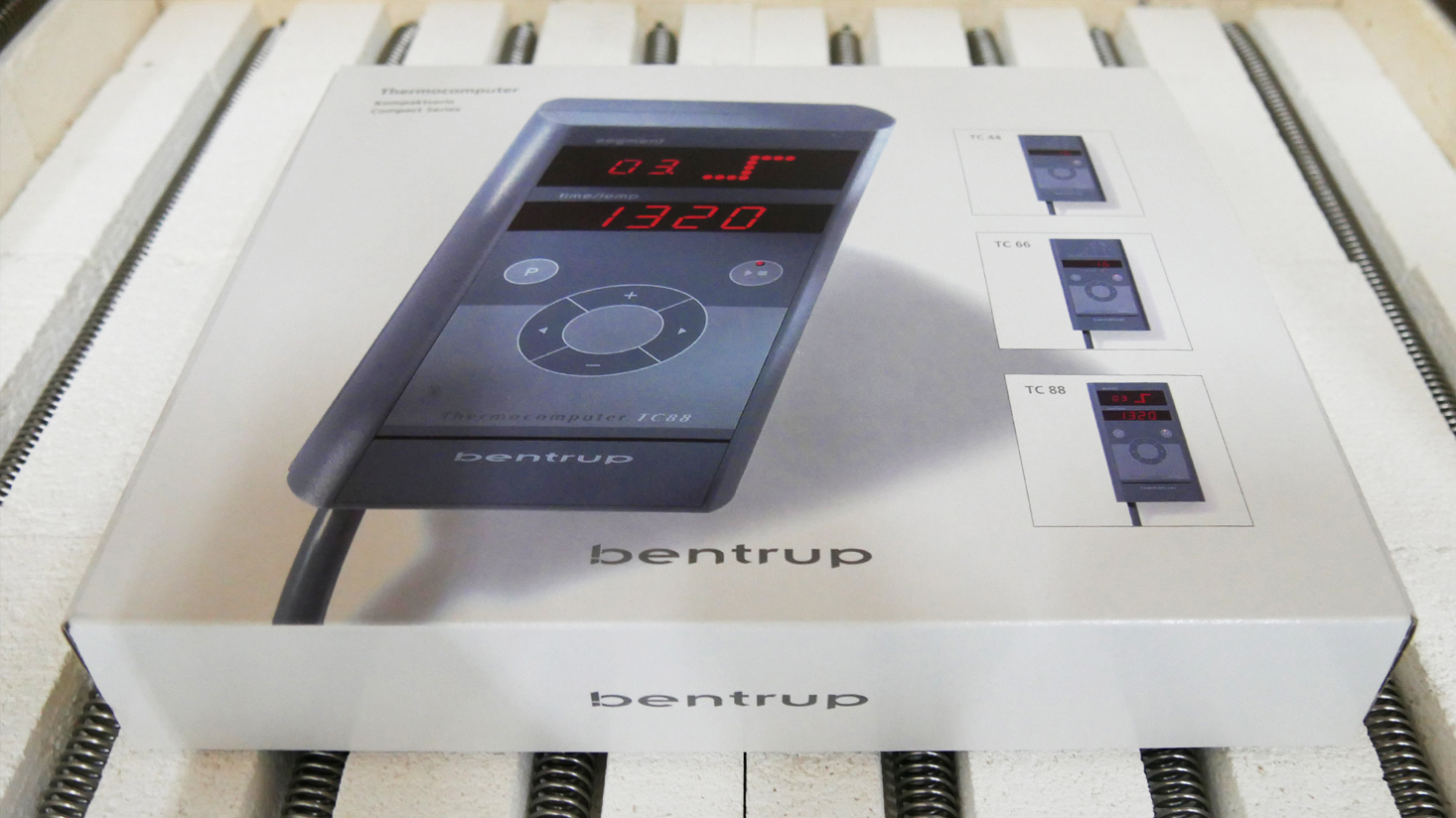

  • Digital controller BentrupTC88e, easy to use with high temperature precision – PID system.

Maximum temperature

1320 °C

Kiln construction

Stainless steel
with 0.8 mm thick

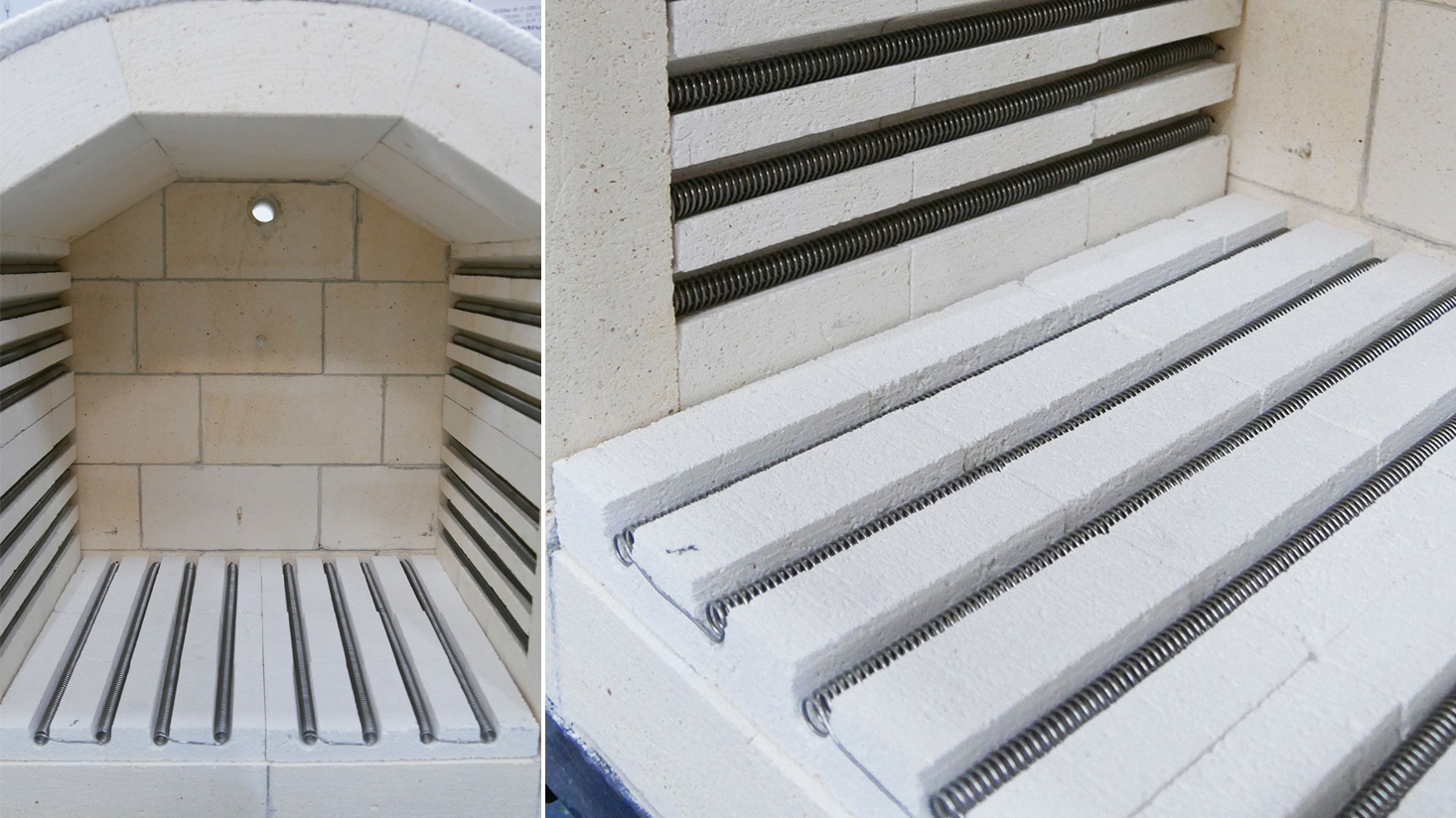

Heating system

Kanthal A1 / Resustohm 145 heating elements

Temperature controller

Digital controller Bentrup TC88e

1-phase or 3-phase

CK 80 E and CK 120 E are compatible with both systems

CK 50 E

  • Internal volume (L): 54
  • Internal dim. W x D x H (mm): 400 x 400 x 358
  • External dim. W x D x H (mm): 740 x 785 x 665
  • Weight: 95 Kg
  • Power: 4.5 kW
  • Current (A) 1PH/3PH: 20
  • Voltage (V) 1PH/3PH: 230+N

CK 80 E

  • Internal volume (L): 85
  • Internal dim. W x D x H (mm): 400 x 400 x 475
  • External dim. W x D x H (mm): 795 x 885 x 780
  • Weight: 115 Kg
  • Power: 6.7 kW
  • Current (A) 1PH/3PH: 29 | 10/PH
  • Voltage (V) 1PH/3PH: 230+N | 3×400+N

CK 120 E

  • Internal volume (L): 121
  • Internal dim. W x D x H (mm): 460 x 515 x 525
  • External dim. W x D x H (mm): 795 x 885 x 835
  • Weight: 137 Kg
  • Power: 9.0 kW
  • Current (A) 1PH/3PH: 39 | 13/PH
  • Voltage (V) 1PH/3PH: 230+N | 3×400+N
